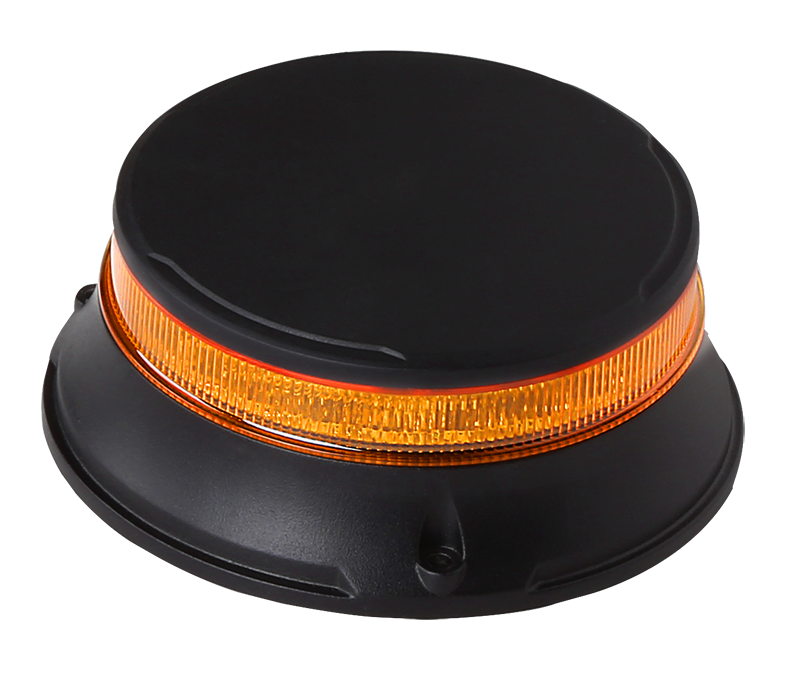

Emark SAE Ultra Compact Beacon Basic Edition
- Commodity name： Emark SAE Ultra Compact Beacon Basic Edition
- Model:： SM-W003-12A Magnetic mounting
- Category： Warning & Signal Lights
- Product： Warning Light
- Applications： Truck & Bus,Construction,Industrial,Agriculture
Category：
You can send us an email：support@sammoon.com.cn
Inquire Now
Product Details
Theorectical power: 24W
PCS LED´s : 24PCS*1W(3030)
Voltage : 10-30 VDC
Consumption (w) : 22.5W(amber);19.5W(red); 16W(blue)
IP-class: IP67
Colour housing: Black
Colour lens: Amber/Red/Blue
Connection: cigar lighter
Mounting method: Magnetic
Material housing: ADC12
Material lens: Polycarbonate
Operating temperature: -40°C–+65°C
Size: φ110*55.8mm(magnetic)
Memory function, synchronization function at least 4pcs
Product standard：ECE R65 TA1
SAE J845 Class 1
ECE R10, CISPR25 Class 3
Product Drawing
Product optical pattern
Product Certification diagram
