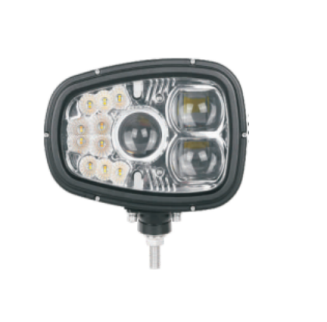

Emark 9 Inch Oval Multi-function Heated Head Light
- Commodity name： Emark 9 Inch Oval Multi-function Heated Head Light
- Model:： SM-9060-RDD-L/R heated lens
- Category： Forward Lighting
- Product： Headlight
- Dimension： 8inch-12inch
- Applications： Special Vehicles
You can send us an email：support@sammoon.com.cn
Inquire Now
Product Details
Theoretical Power: High beam 44W-22W*2PCS
Low beam 22W-22W*1PCS
Parking light 10W-1W*10PCS
Front turn 11W-1W*11PCS
Rear turn 1W-1W*1PCS
Effective Power: high beam-85W(heated on)
low beam-55W(heated on)
Voltage: 12-30V DC
Effective Lumens: High beam-1350LM
Low beam-700LM
Parking light-65LM
Turn-400LM
Beam: high beam+ low beam+parking+turn
Color Temperature:4750-5300K(hi/low beam/parking),1700K(turn)
Material: Diecast alluminum housing, tempered glass lens
Wiring: DT04-6 Connector
IP67 waterproof
Operating temperature: -40°C–+85°C
Product standard：R112/R6/R7

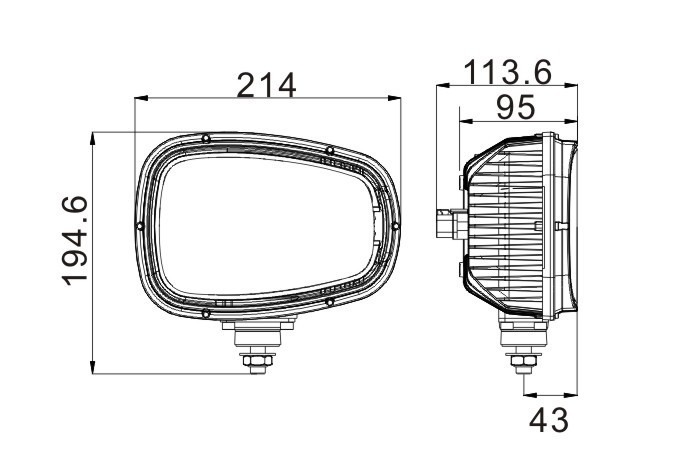

Product Drawing
Product optical pattern
Product Certification diagram
