Emark SAE X Strobe Light with Work Light

  • Commodity name: Emark SAE X Strobe Light with Work Light
  • Model:: SM-W002-11A
  • Category: Warning & Signal Lights
  • Product: Warning Light
  • Dimension: 2inch-4 inch
  • Applications: Truck & Bus,Construction,Industrial,Agriculture


You can send us an email:support@sammoon.com.cn

Inquire Now
undefined
undefined
undefined
undefined
+
  • undefined
  • undefined
  • undefined
  • undefined

Product Details




Theorectical power: 12W+4.5W
PCS LED´s:4PCS*3W(3535)
                         9PCS*0.5W(2835)(working lamp function)
Voltage:10-30 VDC
Consumption (w) :7.5W(amber); 7.2W(red); 5.8W(blue)
                                  4.0W(working lamp function)
IP-class:IP67
Colour housing:Black
Connection:open end 300mm
Mounting method:Screws
Material housing:ADC 12
Material lens:Polycarbonate
Operating temperature:-40°C–+65°C
Size:120*39*18mm
Synchronization function at least 4pcs

Product standard:ECE R65 XA2
                           SAE J595 Class1
                           ECE R10,CISPR25 Class 3



Previous

Next

Previous

Next

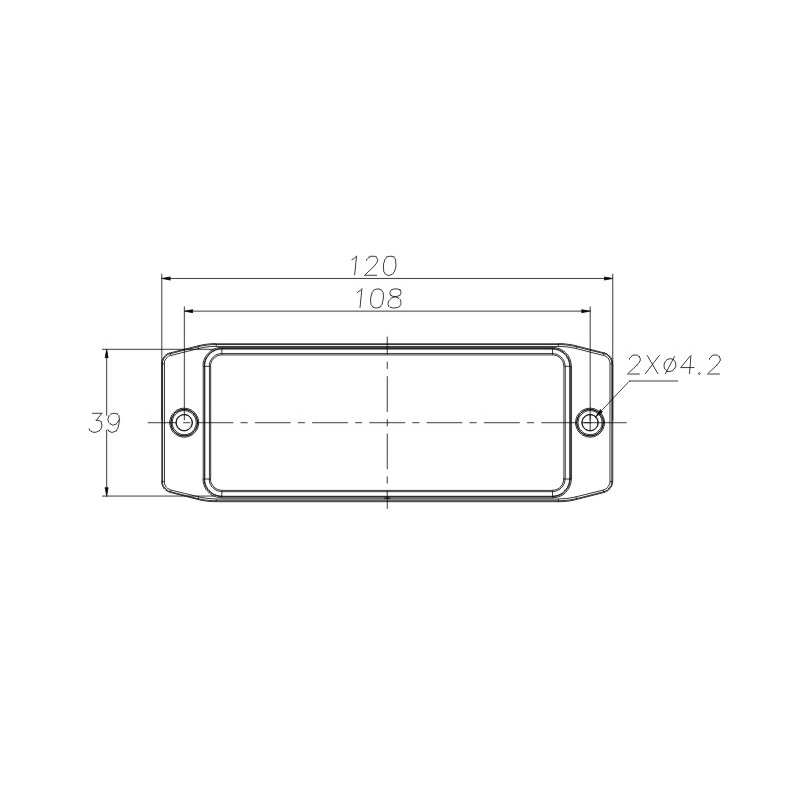

Product Drawing


Product optical pattern


Product Certification diagram
