Emark SAE X Strobe Light

  • Commodity name: Emark SAE X Strobe Light
  • Model:: SM-W001-11B PC housing
  • Category: Warning & Signal Lights
  • Product: Warning Light
  • Dimension: 2inch-4 inch
  • Applications: Construction,Industrial,Agriculture,Truck & Bus


You can send us an email:support@sammoon.com.cn

Inquire Now
undefined
undefined
undefined
undefined
+
  • undefined
  • undefined
  • undefined
  • undefined

Product Details




Theorectical power: 4W
PCS LED´s:4PCS*1W(3030)
Voltage:10-30 VDC
Consumption (w) :3.8W(amber), 4.0W(red), 3.0W(blue)
IP-class:IP67
Colour housing:Black
Connection:open end 300mm
Mounting method:Screws
Material housing:PC
Material lens:Polycarbonate
Operating temperature:-40°C–+65°C
Size:120*35*15mm
Synchronization function at least 4pcs

Product standard:ECE R65 XA1
                           SAE J595 Class1
                           ECE R10,CISPR25 Class 3







Previous

Next

Previous

Next

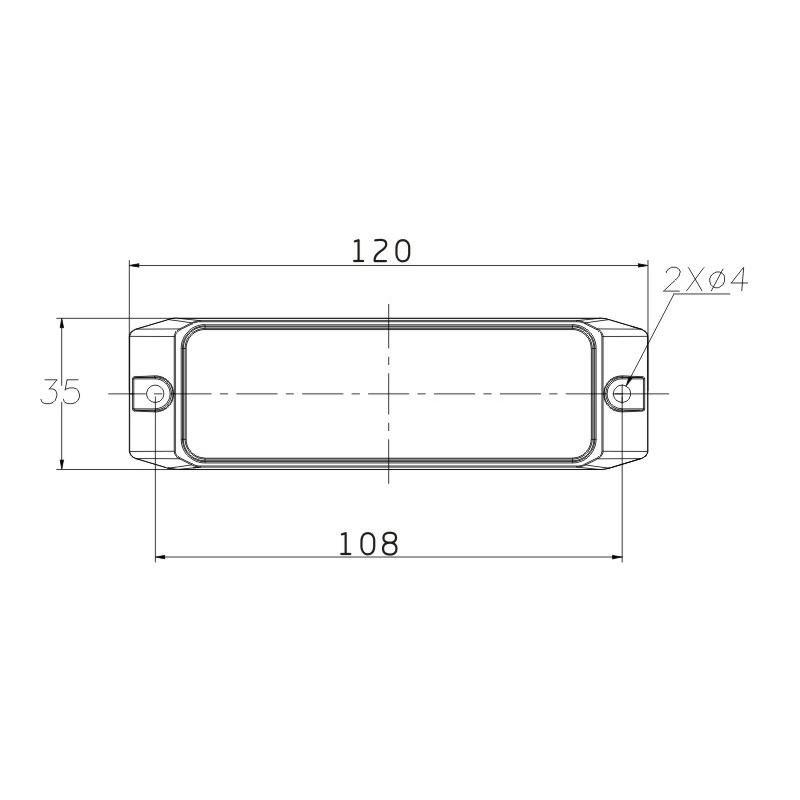

Product Drawing


Product optical pattern


Product Certification diagram
