Emark SAE X Strobe Light

  • Commodity name: Emark SAE X Strobe Light
  • Model:: SM-W007
  • Category: Warning & Signal Lights
  • Product: Warning Light
  • Dimension: 4inch-8inch
  • Applications: Truck & Bus,Construction,Industrial,Agriculture


You can send us an email:support@sammoon.com.cn

Inquire Now
undefined
undefined
undefined
undefined
undefined
+
  • undefined
  • undefined
  • undefined
  • undefined
  • undefined

Product Details




Theorectical power: 18W
PCS LED´s:6PCS*3W(2020)
Voltage:10-30 VDC
Consumption (w) :5.4W(amber),5.2W(red),6.3W(blue)
IP-class:IP67
Colour housing:Black
Connection:open end 300mm
Mounting method:Screws
Material housing:ADC 12
Material lens:Polycarbonate
Operating temperature:-40°C–+65°C
Size:124*24*18mm
Synchronization function at least 4pcs

Product standard:ECE R65 XA1
                           SAE J595 Class1
                           ECE R10



Previous

Next

Previous

Next

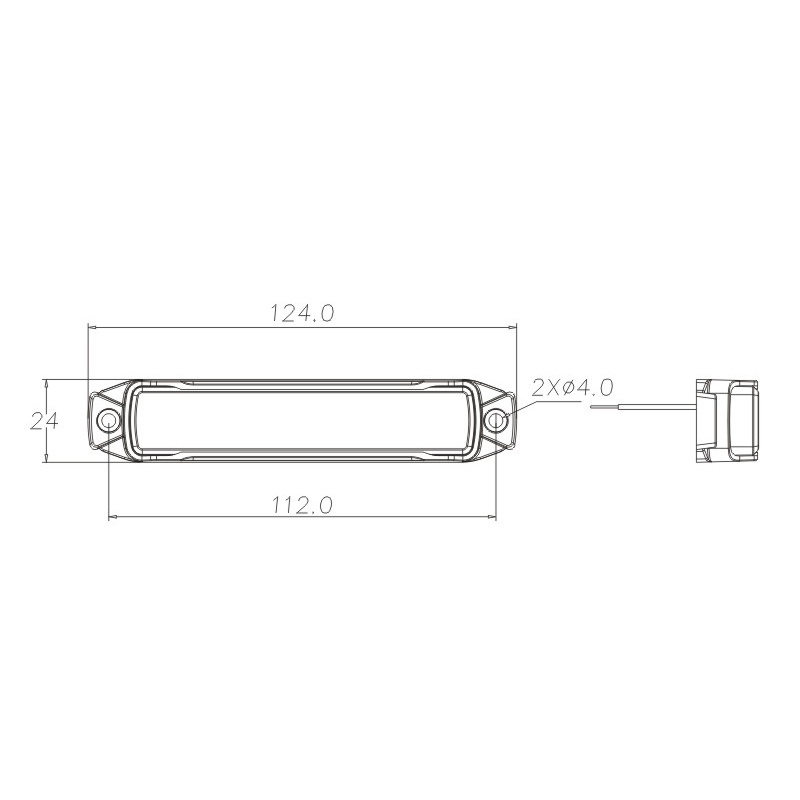

Product Drawing


Product optical pattern


Product Certification diagram
